Description

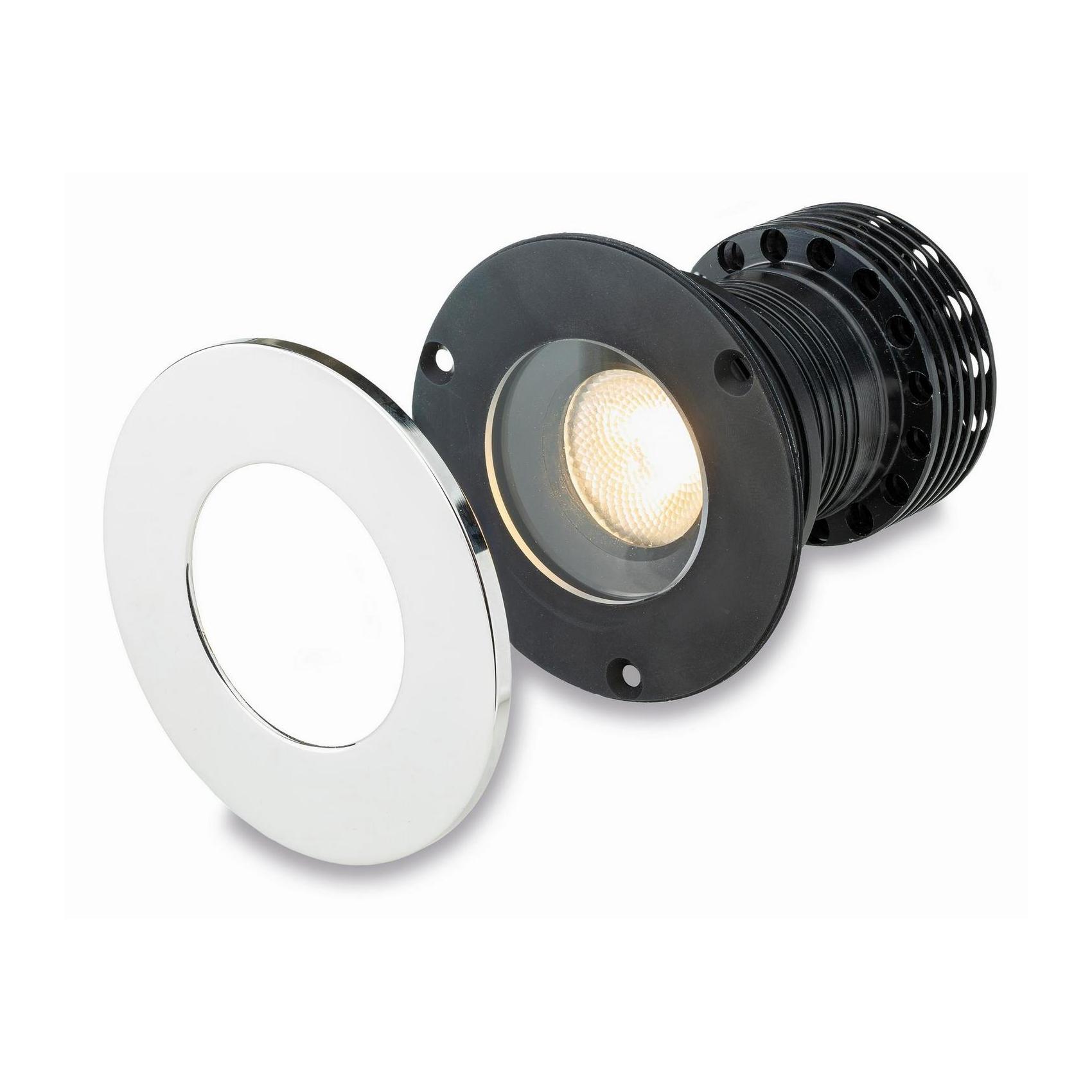

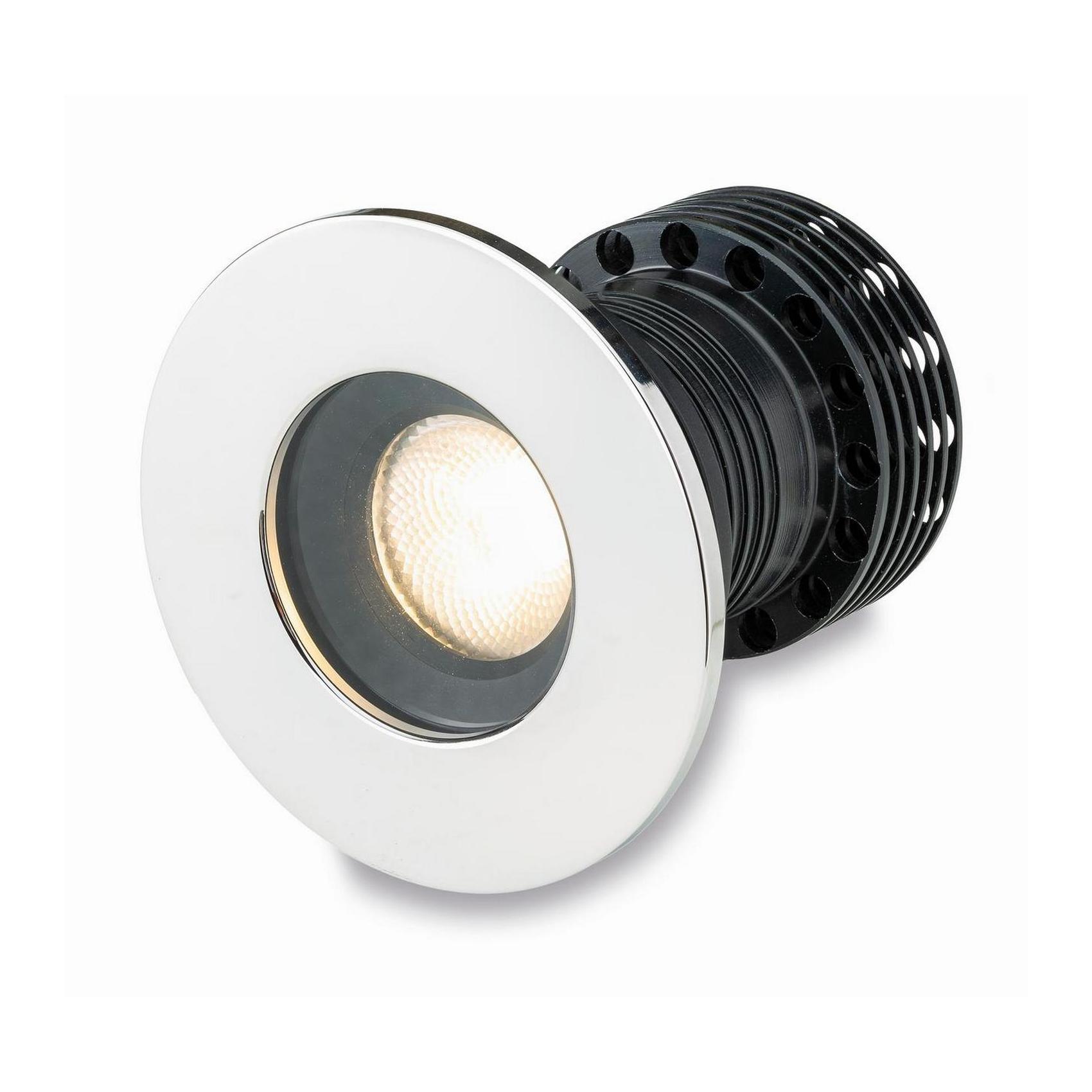

(R)EVOLUTION
A real design “(R)evolution” generating many beats
of light from one beating “downlight-heart”.
Size
Medium
Unit
Single
Frame
Flush mounted with frame
Direction
Fixed
Technical information
| voltage | 18/32 Vdc |
| power | 6 W |
| driver | Integrated driver |
| IP_rating | IP68 |
| CRI | > 90 |
| CCT | 2700, 3000, 4000 K |
| GLASS | Tempered, Transparent, Frosted |
| Beam |
 10-20° |
 20-35° |
|
 35-60° |
|
 > 60° |
| Options |
 Anti-glare screen printing |
 RGBW |
Drawings and dimensions
Diameter: 50.5 mm
Height: 64.5 mm
Outer_diameter: 71.0 mm
Finishes and fixing
Finishes
Polished ss
Brushed ss
Anodized silver aluminum
Anodized black aluminum
RAL Coating
Bespoke Coating
Fixing
SP SYSTEM, Screws | O-Ring + Bushing on demand
